Hertz Capri HBB Digital Hidden Marine Source Unit
Source Units

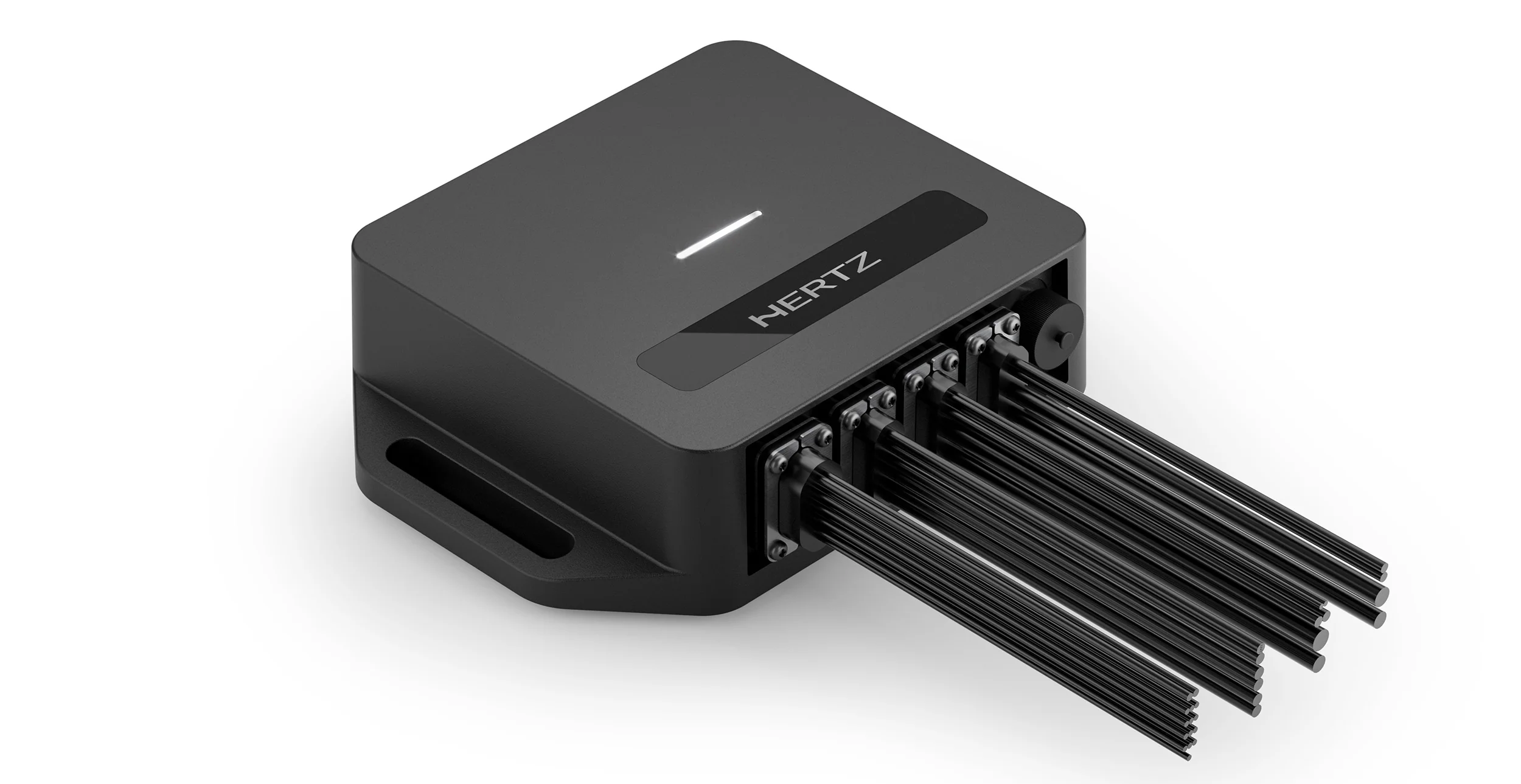

The CAPRI HBB is the black box version of the renowned Hertz CAPRI marine source, delivering the same high-resolution audio performance and advanced features without an integrated display. Designed for seamless control via remote units, Bluetooth® app, or NMEA 2000®, it ensures full management of four independent zones with dedicated subwoofer outputs. Engineered to withstand harsh marine environments, the CAPRI HBB offers superior connectivity, including Bluetooth® 5.1, USB, digital inputs/outputs, and DAB+ readiness, for an audiophile-grade marine experience.
Features:
- Native DSP working at 24 bit/96 kHz and an extended audio band up to 40 kHz for hi-res audio performance.
- CAPRI BB is designed to play 24-bit/96 kHz hi-res audio for audiophile sound.
- CAPRI BB features 4 pairs of stereo outputs each with independent subwoofer output providing the ability to create 4 independently controlled listening areas to obtain the perfect sound everywhere.
- The powerful 8-band digital equalizer will support you in finding the best sound.
- Customize the sound with 8 EQ presets created by Hertz audio engineer.
- Voltage indicator to check battery status.
Specs
Specification
PEAK POWER @ 4 Ω CLASS-D: 4 x 70 W
FRONT PANEL IP RATING IP67
MULTI-ZONE 4
LINE OUT (RCA) 4x L+R (one per zone) - HPF: ALL, 60, 80, 100 Hz
SUBWOOFER OUT (RCA) 4x (LPF: ALL, 60, 80, 100 Hz)
AUX INPUT (RCA) 1x L+R
S/PDIF DIGITAL IN Toslink (24 bit/96 kHz)
S/PDIF DIGITAL OUT Coaxial (24 bit/96 kHz)
EQUALIZER CUSTOM 8 BANDS for each zone
EQ. PRESET 8
CAMERA IN Yes
BATTERY VOLTAGE GAUGE Yes
Size & Mounting
Unit Size mm (in.) W 146 (5.748) x H 105 (4.134) x D 121 (4.763)
Mounting Hole size mm (in.) W 122 (4.8) x H 52 (2.05)
Mounting Depth mm (in.) 99 (3.89
Mounting Method Panel mount (4 screws)
Sources
TUNER AM/FM (RDS) (EU/US) Weather band
USB Yes (2A)
IPOD/IPHONE Yes
DAB+ Ready
SIRIUSXM READY Yes
BLUETOOTH 5.1
Audio streaming with ID3 Tag Display
LDAC – AAC – APTX HD
REMOTE CONTROL HMC HD1 (up to 4 zones) HMC U1 (up to 2 zones)
